DLA ENGINE'S

IN STOCK

ALL DLA ENGINES COME WITH,

STAND OFF'S, INGINITION,

PIPES, SPARK PLUG

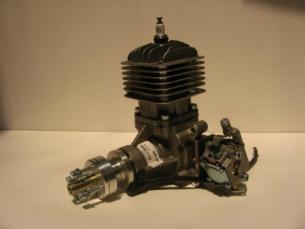

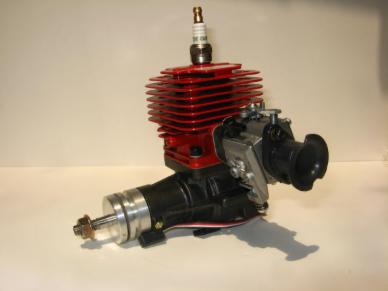

DLA 32

$230.00

This is the DLA 32cc 2 Stroke Gasoline Engine. With features that include a CNC machined billet alloy crank case, high-power reed valves and refined porting for high RPM capabilities, DLA engines are an incredible value!

Specifications:

Performance： 3.8HP/8200rpm
Idle speed: 1700rpm/min.

8.8Kg Pulling Force/100meters Altitude
7.8Kg Pulling Force/1800meters Altitude

Propeller: 18*8, 18*10, 19*8, 20*8
Spark Plug: NGK CM6
Exhaust Amount: 32.23cm3
Bore x Stroke: 37mm x 30mm
Compression Ratio: 7.6:1
Lubrication Ratio： 30:1 （Break In）， 40:1~50:1（Normal Flying）
Main Engine Weight: 910g
Muffler Weight: 65g
Ignition Weight: 100g

----------------------------------------------------

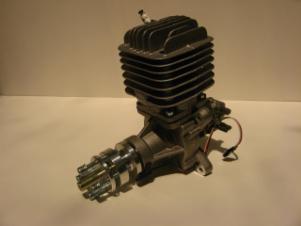

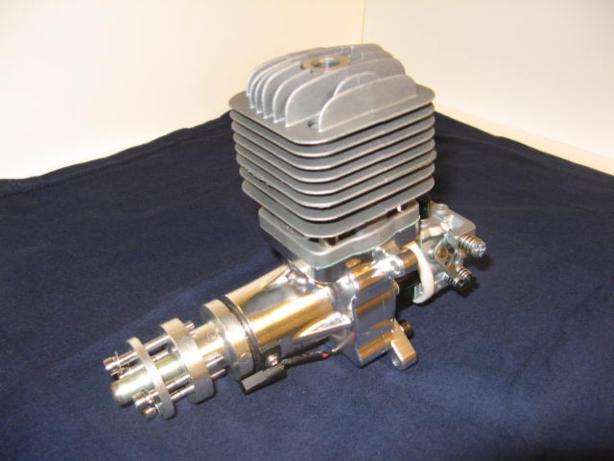

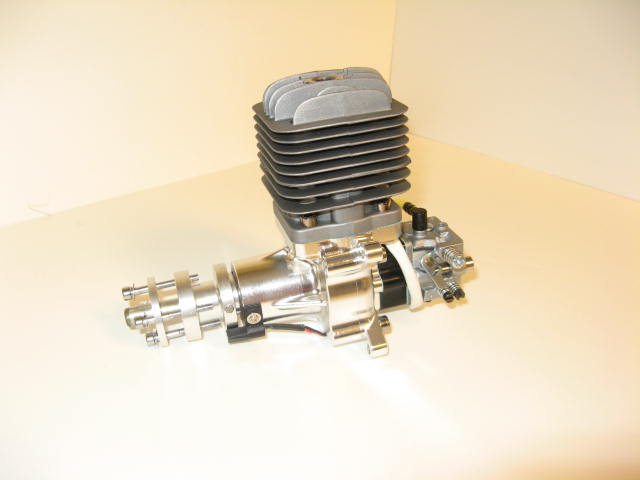

DLA 56

$300.00

This is the DLA 56cc 2 Stroke Gasoline Engine. With features that include a CNC machined billet alloy crank case, high-power reed valves and refined porting for incredible high RPM capabilities, DLA engines are an incredible value!

Specifications:

Power: 5.6HP/7600RPM
Idle Speed: 1400rpm/min
Pulling Force: 15kg/100M Altitude, 13kg/1800M Altitude
Aircraft Propeller: 22×8，22×10， 23×8， 23×10
Spark Plug: NGK CM6
Exhaust Amount: 56cm3
Cylinder Bore×Stroke: 45mm×35mm
Compression Ratio: 7.8：1
Lubrication Ratio: 30：1 （Break In）， 40：1 （Normal Flying）
Weight:

Main Engine: 1290g
Exhaust Pipe: 115g
Ignition: 120g

---------------------------------------------------

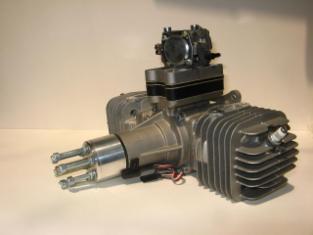

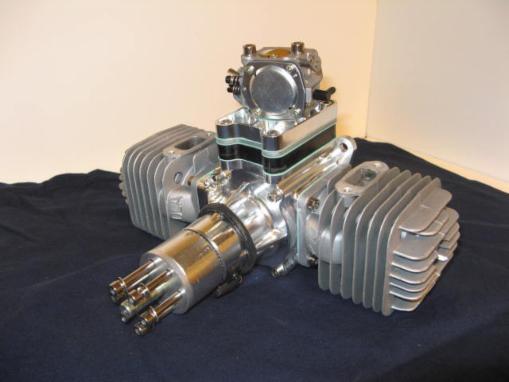

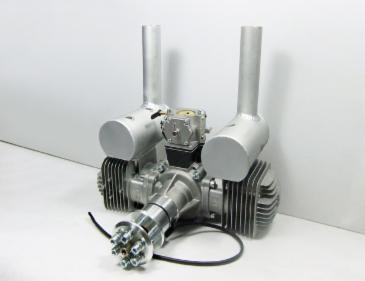

DLA 112

$540.00

This is the DLA Twin Cylinder 112cc 2 Stroke Gasoline Engine. The DLA 112 twin cylinder engine packs a huge 11.2HP punch at 7500 RPM! With features that include a CNC machined billet alloy crank case, high-power reed valves and refined porting for high torque, DLA engines are an incredible value!

Specifications:
